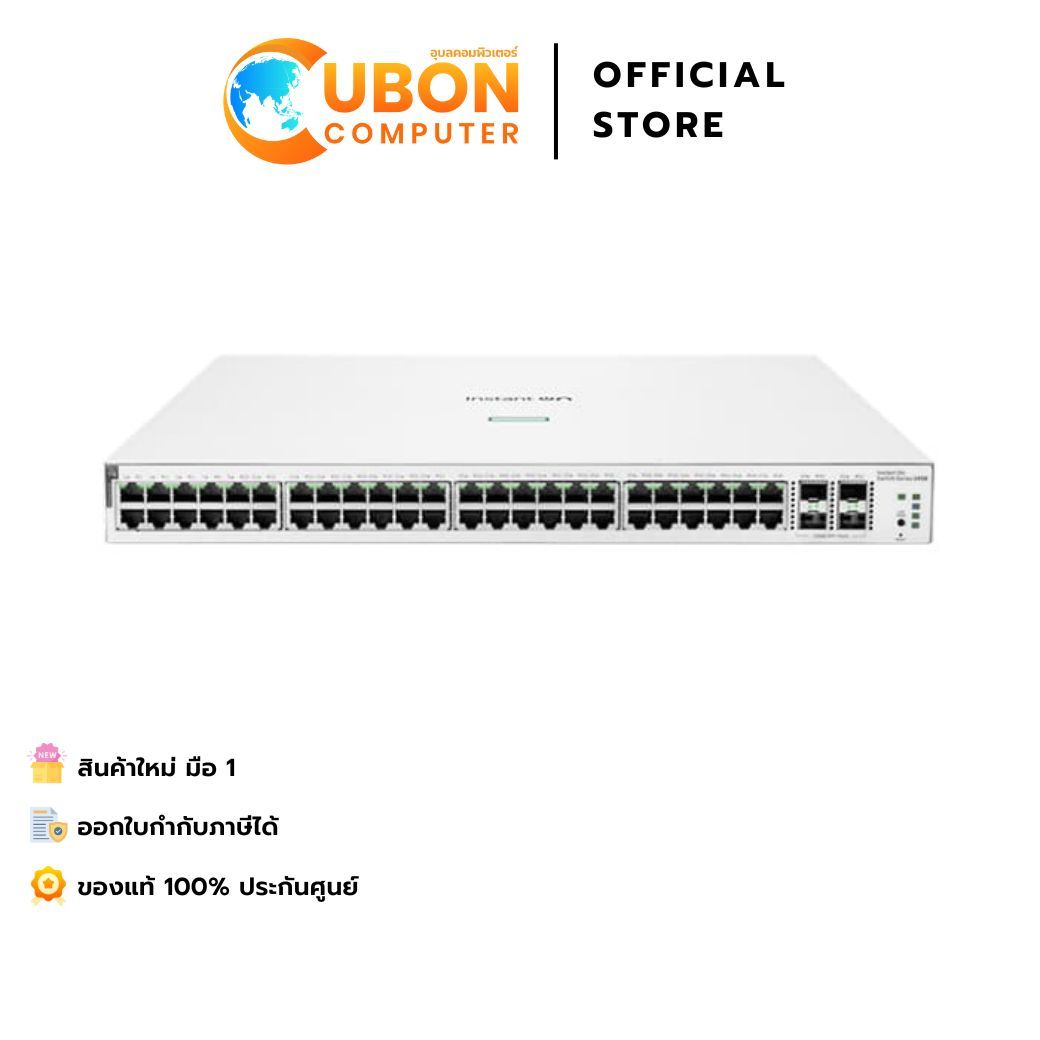

SWITCH (สวิตซ์) Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W (JL686B)
- Aruba IOn 1930 48G 4SFP+ 370W Switch (JL686B)
-
48 x Gigabit Ethernet Ports with 48x PoE+ with 4 Ports SFP/SFP+ (1/10GbE ports)
-
48 RJ-45 autosensing 10/100/1000 ports
-
Throughput : up to 130.95 Mpps
-
Switching capacity : 176 Gbps
-
Power Over Ethernet (POE) 370 Watt
-
Internal power supply
- ประกัน Lifetime
DATASHEET
https://www.hpe.com/psnow/doc/PSN1014652426WWEN.pdf?jumpid=in_pdp-psnow-dds
- Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
- Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
- 1G/10G SFP+ ports on 24-and 48-port models for fiber connectivity.
- Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
- Option to manage your switches through local web GUI.
- Limited Lifetime Warranty.
DifferentiatorAdvanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 48 10/100/1000 RJ-45 and 4 SFP 1/10GbE ports. Provides 370 W Class 4 PoE power.
Power consumption520.0 W maximum, 50.0 W idle
Input voltage100 - 127 / 200 - 240 VAC
Ports48 RJ-45 10/100/1000 ports, 4 SFP 1/10GbE ports
Switching capacity176 Gbps
Throughput130.95 Mpps, maximum
Memory and processorARM Cortex-A9 @ 800 MHz
512 MB SDRAM, 256 MB flash
1.5 MB packet buffer
PoE capability370 W Class 4
Management featuresAruba Instant On Portal, Web browser, SNMP Manager
WarrantyLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration
Weight4.59 kg (10.12 lb)
Dimensions4.39 x 44.25 x 32.26 cm (1.73 x 17.42 x 12.7 in)
Key Features
Simplify Network Deployment and Management for Small Organizations
The Aruba Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment.
The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8G-, 24G-, and 48G-ports with and without class 4 PoE (i.e. PoE+).
The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.
The Aruba Instant On 1930 switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
Keep Your Business Protected with Integrated Security Features
The Aruba Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.
Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.
Deliver High Perfomance
The Aruba Instant On 1930 switch series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.
8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.
The 24- and 48-port models include 1G/10G SFP+ ports for reliable fiber connectivity and other connections across longer distances.
The switch series is covered by the Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.
