Brand

TP-LINK

Model

TL-MR100

Standards

IEEE 802.11b/g/n

Antennas

2 Detachable External 4G LTE Antennas

Transmit/Receive

< 20 dBm (2.4 GHz)

Frequency

2.4GHz

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless

Statistics

Interface

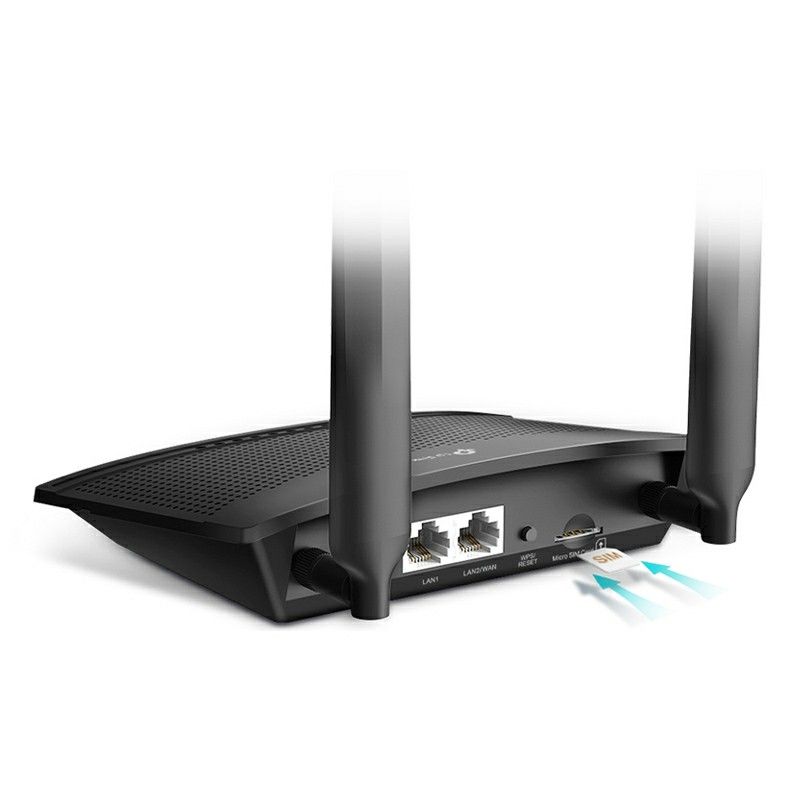

1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port,

1 Micro SIM Card Slot

Button

WPS/Reset Button

Management

Local Management, Remote Management

4G/3G/2G

4G : FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)

TDD-LTE : B38/B40/B41 (2600/2300/2500 MHz)

3G : HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

System Requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,

NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser

Micro SIM Card

Power Supply (PoE)

9V/0.85A

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certification

CE, RoHS

Package Contents

300 Mbps Wireless N 4G LTE TL-MR100

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

Dimension

(W x D x H) : 15.40 x 11.40 x 3.60 cm

Net Weight

0.48 KG
