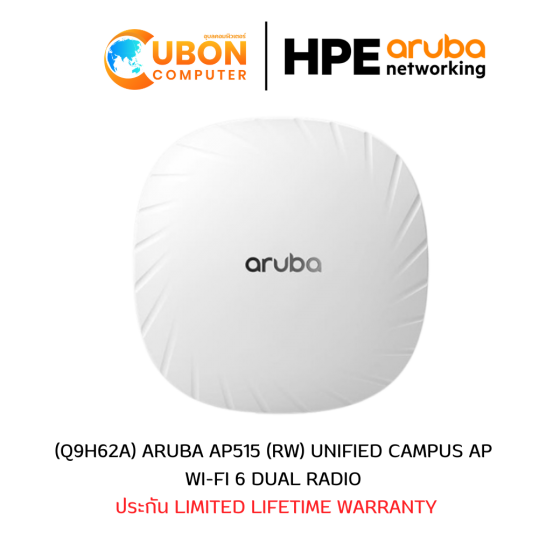

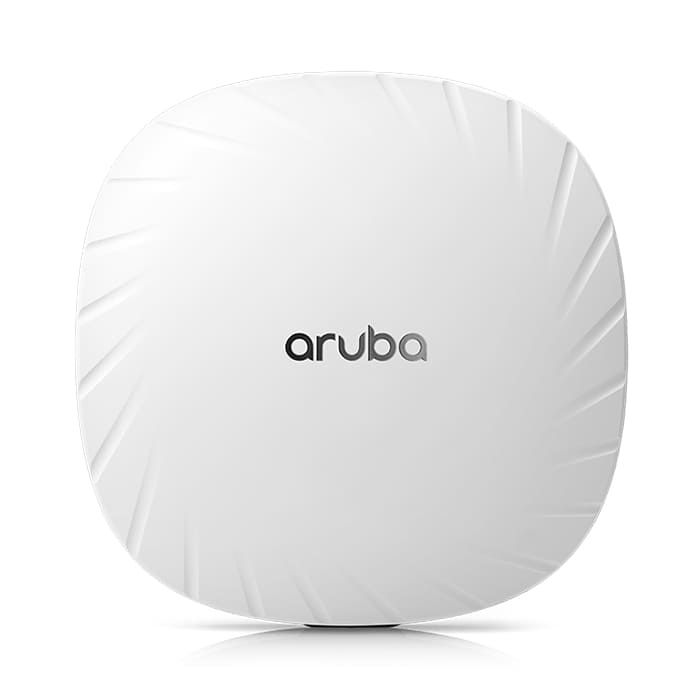

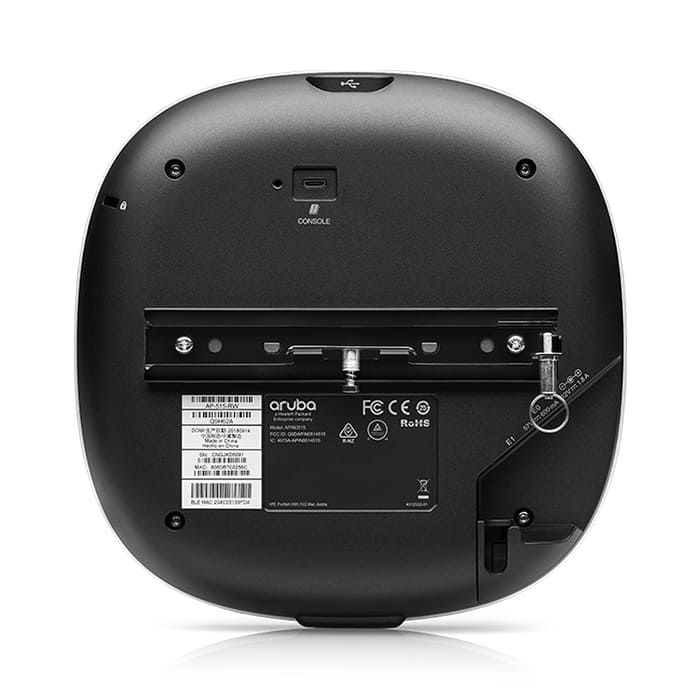

Aruba AP-515 Wi-Fi 6 Campus Access Point

Key Features:

• High-Speed Performance: Delivers up to 2.69 Gbps combined data rate.
• Wi-Fi 6 Technology: Equipped with 4x4 MIMO for 5GHz and 2x2 MIMO for 2.4GHz, supporting MU-MIMO and OFDMA to enhance multi-user performance.
• IoT Ready: Integrated Bluetooth 5 and Zigbee support for seamless IoT device connectivity and asset tracking.
• Client Management: Supports up to 512 client connections per radio, ideal for high-density environments.
• Enhanced Security: WPA3 and Enhanced Open for secure, reliable connections, along with Trusted Platform Module (TPM) for secure credential storage.
• Power Efficiency: Intelligent Power Monitoring (IPM) adapts power usage based on PoE availability.
• Application Assurance: Air Slice technology allocates radio resources dynamically for optimal application performance.
• Environmental Rating: Operates up to 50°C and is plenum rated, ensuring durability in various installations.

Specifications:

• Wi-Fi Standard: Wi-Fi 6 (802.11ax)
• MIMO Configuration: 5GHz: 4x4 MIMO | 2.4GHz: 2x2 MIMO
• Peak Data Rate: Up to 2.69 Gbps
• Client Capacity: Up to 512 clients per radio
• Network Ports: 1x HPE SmartRate (up to 2.5 Gbps), 1x 10/100/1000BASE-T
• Power Options: Supports PoE (802.3at/bt) and direct DC power
• Dimensions: 200 x 200 x 46 mm (7.9” x 7.9” x 1.8”)
• Weight: 810 g (28.5 oz)
• Operating Temperature: 0°C to +50°C (32°F to 122°F)

Included in Package:

• Aruba AP-515 Access Point
• Mounting bracket (R3J19A) - AP-MNT-E Campus AP mount Bracket kit (individual) type E : Wall box
• Quick start guide

Warranty: Limited lifetime warranty

Ideal For: Offices, hospitals, educational institutions, and high-density public spaces needing reliable and high-speed Wi-Fi connectivity.
